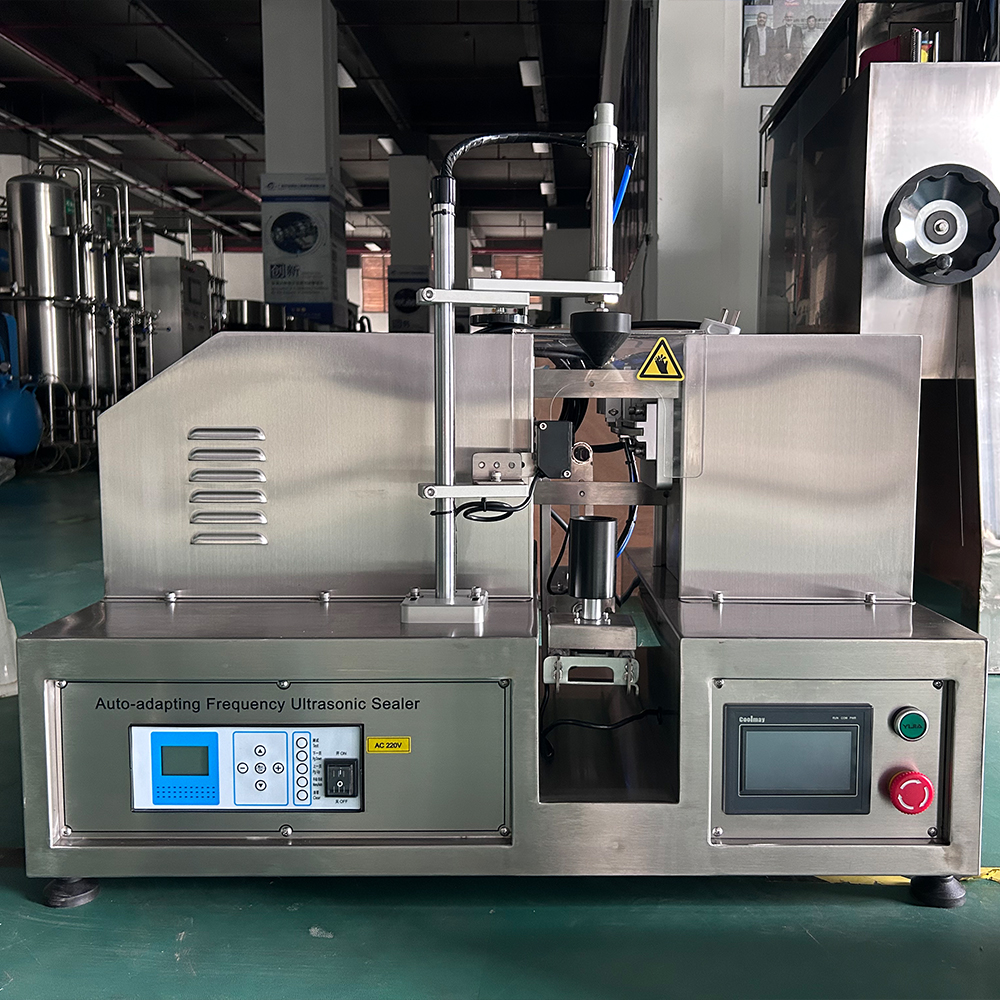

*Adopts ultrasonic sealing technology, no need warm up time, more stable and neat sealing, no distortion andlow reject rate less than 1%.
* Manually feed the tube,press start button, machine could automatically identify the registration mark, sealing(with coding),end trimming.
*Independent R&D for digital ultrasonic automatic tracking electrical control box, no need manual adjust tfrequency,with power auto compensation function, avoiding the reduction of power after long time use. Could freely adjust the power based on tube material and size, stable and minimum the fault rate, extend the life spalthan the normal electrical box.
*PLC with touch screen control system, providing friendly operation experience.
*Made of 304 stainless Steel, acid and alkaliresistance, corrosion resistance.
*Panasonic high sensitive sensor with stepping motor, could track the registration mark precisely.
*Table top design,practical and compact.
Model | FWJ |
Frequency | 20KHZ |
Power | 2600W |
Power Supply | AC220/110V 1PH 50HZ/60HZ |
Sealing Dia | 10-50mm |
Tube Height | 50-220mm |
Capacity | 8-12pcs/min |
Air Pressure | 0.6Mpa |
Dimension | L850*W600*730mm |
NW | 85kgs |
