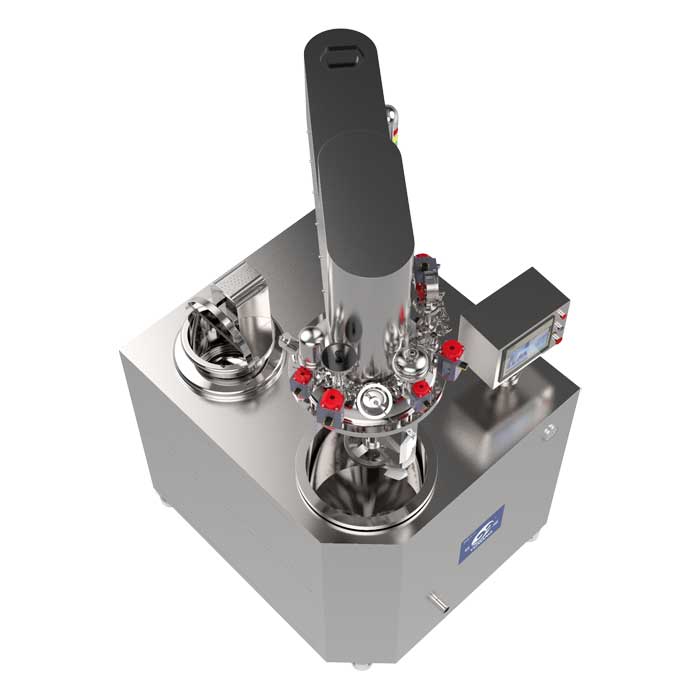

Machine description

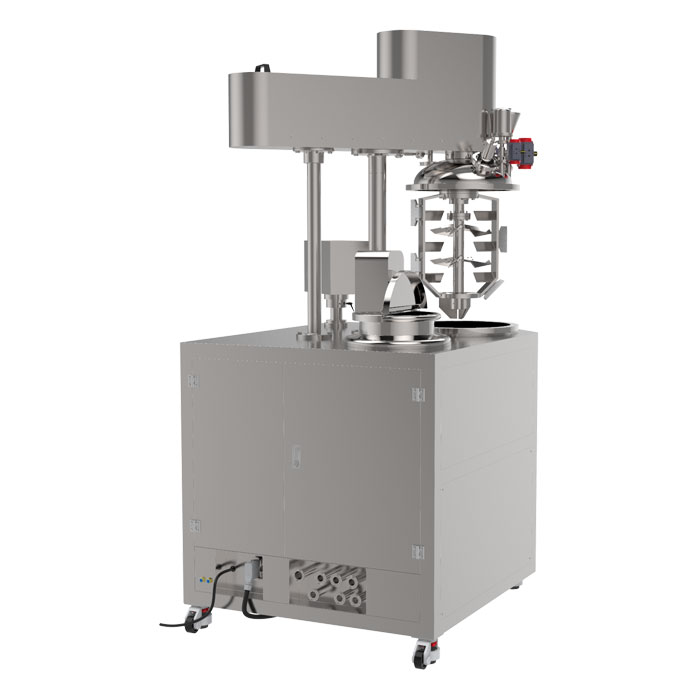

     The machine is composed of large vane mixer used for mixing materials of high viscosity and small strong cuting typhomcgenizing mixer for high speed mixing.

     Scrapers are provided around vanes of the mixer. The materials sticking to boiler wall can be effectively eliminated bthe scrapers so as to realize suficient blending of materials. Under the cuting, pressing and folding functions by twcsets of reverse mixers, the scraped treatment fluids are mixed and wil flow downwards to the position below the vessewhere the homogenizing mixer can carry out pretreatment.

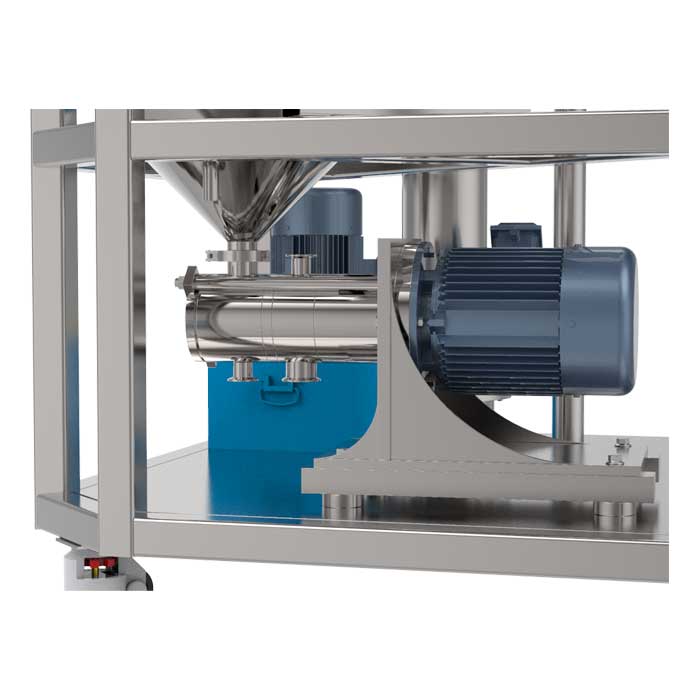

     High-shear dispersion and emulsification is to distribute one phase or more to another continuous phase in a highly-efficient, rapid and even way. Generally, the phases are mutually indissoluble. The materials will be processed in thenarow space between stator and rotor by high tangential speed and strong energy of motion respectively producedby fast-turning rotor and high frequency mechanical effect, By the operation of intensive shearing, centrifugalextruding, liquid layer attrition, impacting and breaking, and even turbulence, the materials of mutualy indisolublesolid phase, liquid phase and gas phase will be refined, dispersed and emulsified instantly with the helo of maturetechnology and proper amount of additive. After high frequency reciprocating circulation, products of stable quality are achieved.

     As shown in the above, the homogenizing mixer and vane mixer complement each other with their respective featuresachieved.for effectively realizing emulsification and mixing of materials of high granularity.

Usage

1. For materials of super high viscosity (above 50,000C.P.S), Tianfu recommends the use of corresponcing high viscosemulsifying homogenizer.

2. Raw materials can be directly sucked into the groove by the machine.

3. The machine is provided with vacuum, hydraulic pressure, heating, cooling and other functions4. Emulsifying, blending and dispersion can be completed within a short period of time.

5. Slow speed blade type blending and high speed homogenizing systems are provided with freauency conversion control6. Users can select pushbutton control or PLC touch screen system.

7. Parts that contact materials are made of stainless steel SS316L. The whole equipment conforms to GMP standard.

8. Blending is carried out under vacuum to effectively ensure the emulsifying effect.

9. The equipment is provided with the ClP cleaning device, which can conveniently use the self-contained CIP clea

system of users to clean the equipment.
